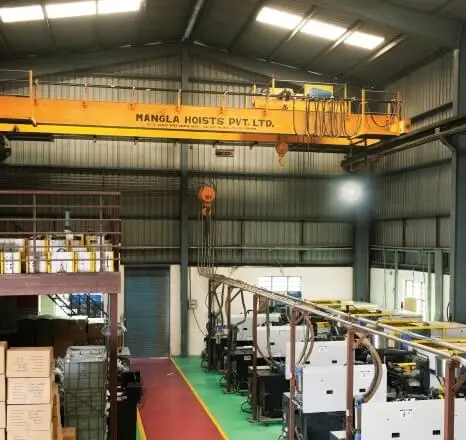

Mangla Hoists has been manufacturing high-quality EOT cranes that are customized in terms of design and application to match all industry-specific requirements.
Some attributes of Mangla EOT Cranes:
| Bridge | IS 807/IS 3177/IS800 |
| End Carriages | Box type |
| L.T. Wheels | Two nos. straight type |
| SWL Up To | 12.5T |
| Span Up To | 30 Meters |
| Long Travel (LT) Speed Up To | 40m/min |
| Cross Travel (CT) Speed Up To | 20m/min |
| Hoisting Speed Up To | 8m/min |
| Hoisting/ Travel Speed | Dual speed offered as standard. VFD (optional) |
| Pinion/Axle | Heat-treated carbon alloy steel |
| Hook | Forged steel - C20, C30 |
| Brakes | A. C. electromagnetic disc type |
| Control Panel | Hoist mounted IP-55 Protection |
| Pendant | Wire rope, suspended from a hoist |
| Safety | Electrical interlocking |
| Hoist | Wire Rope Electric Hoist |
| Testing | 25% overload as per IS 31 |
Mangla EOT Cranes can be customized as per the client’s requirements
0.5 T, 1T, 2T, 3T, 4T, 5T, 6T, 7T, 7.5T, 10T, 12.5T, 15T, 20T, 25T, 30T, 40Ti2
When you are looking for an overhead EOT crane, the most essential is to know the span, lift height, and lift capacity. It will help you in deciding which model will be the most suitable lifting solution for your business.
Yes, certainly. Being the manufacturer, we will be able to supply all spare parts related to the hoist and crane, like motor, drums, hooks, rails, wheels, grabs, etc.
We at Mangla Hoists take our client's safety very seriously. We take all necessary steps to ensure complete safety at all times. In our EOT Crane, we provide, electrical interlocking safeguards which protects against any accidental simultaneous motions of the crane due to the activation of multiple push buttons at the same time.
There are three ways to complete the process of inspecting the safety hook on the overhead crane:
a) Visual inspection
b) Test operation
c) Function test
For the function test, do ensure that there is nothing hindering the movement between the safety hook and rail or the main girder web. This will in turn ensure that the trolley can move along the main girder with ease. Also check for the following:
Overhead crane or bridge crane is used to improve the working efficiency of your factory and warehouse. Ask this set of questions to yourself before selecting your overhead crane:
1. How will the overhead crane move? (Up or down, left or right, forward or back?)
2. Note down your overhead crane specifications, such as lifting capacity, size, span, lift, etc.
3. How often your overhead crane will be used, once a week, once or twice a day, or constantly? And duration?
4. For how long the manufacturer or provider of the overhead crane has been in business?
5. Do they have direct experience of your industry?
6. Can they offer customized crane solutions to you as per your requirements?
7. Do they follow National / International quality standards?
8. Are their cranes ISO certified? See our overhead crane certifications and approvals.
