Mangla JIB Cranes

**JIB cranes** are usually self-supported, pillar-mounted and have a swiveling arm for lifting and shifting loads. They can be both electrically or manually operated. Our cranes are most suited for loading & unloading of jobs on machines or assembly station or from transport vehicles. **Jib cranes** are useful for “handing off” materials to adjacent workstations. They come in a variety of lifting capacities from 250 Kgs to 5000 Kgs with column heights up to 9 Mtr and arm lengths upto 9 Mtr.

JIB cranes are carefully designed using the latest technology which is a result of decades of research and development by Mangla. We have vast experience in **JIB cranes** for high lifts and long arm lengths. With years of experience in manufacturing quality products, we always aim at making our customers fully satisfied.

Features of JIB Crane

  • Modern Design: Mangla **JIB cranes** offer state-of-art designs for everyday lifting and lowering of a load within a fixed arc of rotation. For instance, the wall-mounted **JIB cranes** are supported by brackets bolted on the wall or on existing column structure. We also provide electrical swiveling arms having variable speeds.
  • Top Performance: JIB arm is made from a light profile section and is supported on anti-friction thrust bearing to ensure long, trouble-free services. All cranes are designed to suit the requirements of our customers.
  • Tailor-make: We understand our customer’s business needs and customize the cranes as per the industry requirements.
  • Quality Products: Mangla **JIB cranes** have a specially fabricated JIB arm and robust pillar so that the increased section at the base provides excellent rigidity to the structure. Moreover, the pillar is designed to ensure minimum deflection at loaded conditions.
  • International Quality Standards: **JIB Cranes** are manufactured as per international / Indian standards IS: 15419. All the parts and components adhere to the above codes.
Mangla Hoists JIB Cranes
  • Rugged Mechanism: Mangla does not compromise with the standards and the quality of its products. All cranes are tested at 25% overload as per IS: 15419 at our works prior to dispatch and comes with our Test Certificate. We have a specially designed test bed for **Jib Cranes** wherein they are erected and tested on load and overload with complete swiveling of arm. We also check the deflection, rotation, smooth swiveling, currents etc requests.
  • Key Specs
  • Variants

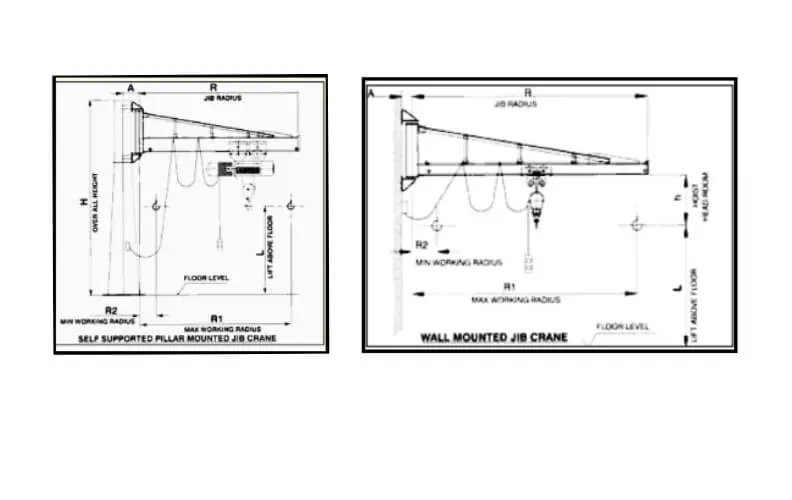

Technical Specifications and Usage

Capacity: 250 Kg. to 5000 Kg.
Delivery Time:Fast or Quick Delivery
JIB Radius:Up to 9 Mtr
Lift:Up to 10M
Testing: Each crane is tested for various parameters and accompanied by our Test Certificate.
Warranty/Guarantee: A warranty is provided for the repair / replacement of any part which proves defective in material or manufacturing within one year of sale.
Improvements:Our engineering team will work on design improvements if required. We always welcome customer feedback and are determined to improve the quality of our products.

Variants

  • 0.5 to 40 Ton CHAIN PULLEY BLOCKS
  • 0.5 to 10 Ton CHAIN ELECTRIC HOISTS
  • 0.5 to 50 Ton WIRE ROPE HOISTS
  • MANUAL & ELECTRIC TROLLEYS
  • 0.5 to 20 Ton HOT CRANES
  • 0.5 to 150 Ton EOT CRANES
  • 1 to 5 Ton JIB AND WALL MOUNTED CRANES
  • 1 to 3T FLOOR OPERATED STACKERS
  • 1 to 3T STORES STACKER CRANES AND 10 TO 25T ROLL OUT RACKS

Structure Of Overhead Crane

Structure of Overhead Crane

Are you curious or confused? Feel free to ask anything!

Frequently Asked Questions

  • Can I use JIB cranes indoors, or can it be used outdoors as well?

    • **Jib cranes** are multipurpose cranes and can be used both indoors and outdoors.

  • What all is required for the JIB crane installation?

    • **Jib cranes** are easy to install when done by our professional team. Our trained staff will inspect the site and do the needful. Mangla **JIB cranes** require foundation on the ground; 360-degree rotation helps **JIB cranes** to work with up-down and right-left direction with high efficiency.

  • Do you customize JIB cranes?

    • Yes, we do. Our qualified engineers will understand your needs and will customize the crane as per your requirements.

  • What are the critical parameters that one should check while getting a quotation for JIB cranes?

    • When it comes to **Jib Cranes**, the key parameters are Arm Length, Height of Lift, Lifting Capacity, and Arm Rotation in Degrees. Kindly book an inspection appointment with our team for more information.


      What aspects should I scrutinize while ordering a jib crane?


      Key pointers for selecting your perfect jib crane:


      • The structural support available at site
      • Electrical or manual lifting, swiveling
      • Efficiency, and power needs for **JIB cranes**
      • If the design is right for your industry needs. (Since we are manufacturers we can customize the **JIB cranes** as per your specifications)
      • Overall height and width under the boom.
      • A cost comparison of different types of **JIB cranes**
      • Current or future need for powered operation of the hoist or crane.
      • Installation cost
      • After-sales service and support.
